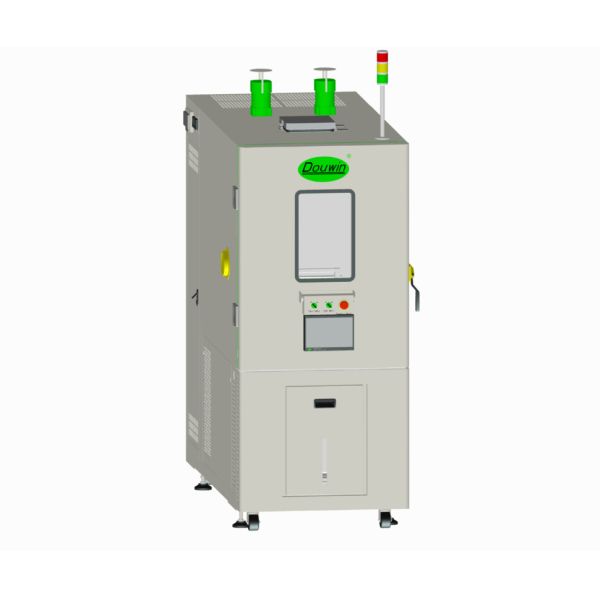

380V PID constant Temperature Humidity Test Chamber
Temperature Controlled
Application:
The chamber can be used for rapid temperature changing screening test of various small products, such as instruments, communication electronic parts, wearable and other terminal products. It can be used for high temperature test,low temperature test,constant temperature and humidity test,high-low temperature alternation test,and high-low temperature and humidity alternation test.
Corresponding Standard:
GB/T 5170.2-2008
GB/T 5170.5-2008
GB/T 2423.1-2008(IEC60068-2-1:2007)
GB/T 2423.2-2008(IEC60068-2-2:2007)
GB/T 2423.3-2016(IEC60068-2-78:2012)
GB/T 2423.4-2008(IEC60068-2-30:2005)
GB/T 2424.7-2008
GJB 150.3A-2009
GJB 150.4A-2009
GJB 150.9A-2009
Technical Parameters :
| Item Name | 380V PID constant Temperature Humidity Test Chamber Temperature Controlled |
| Model | DTB-1000-A70B150-H-A |
| Workspace Dimensions(MM) | 1000×1000×1000 |
| Volume(L) | 1000 |
| Temperature Change Rate | Heating Rate:-70℃～+150℃≥4℃/min Cooling Rate:+20℃～-70℃≥1℃/min |
| Temperature Range | -70℃～+150℃ |
| Humidity Range | 25℃～85℃
20%～98%RH |
| Power Supply | 380VAC±10%,50Hz±1% |
| Temperature Uniformity | ≤2℃(No Load) |
| Temperature Fluctuation | ≤±0.5℃(No Load) |
| Temperature Deviation | ≤2℃(No Load) |
| Humidity Deviation | ±3%RH(＞75%RH no load),±5%RH(≤75%RH no load) |
| Resolution | 0.1℃,1%RH |
| Standard Configuration | Φ100mm cable port×2,with soft high-low temperature resistant rubber plug Equipped with standard RS232/RS485/RJ45 communication interface Stainless steel sample shelf ×2 Caster/×4 sets Interior light |
Main Features:
| 1. The chamber adopts humanized man-machine interaction interface,it is so easy for buyer to operate it. |
| 2. The chamber is matched remote monitoring software, and provides RS232/RS485/RJ45 standard communication interfaces to realize the remote control and management of the test chamber. |
| 3. The chamber is small and beautiful.It has stable performance and low noise, and it is very suitable for various laboratories and production lines. |
| 4. The chamber adopts innovative energy-saving technology and has passed the national energy-saving certification. Compared with other similar products,our chamber helps saving 38% energy. |
| 5. The chamber adopts the form of air cooling heat exchange, does not need external cooling water, with the low environmental requirements, it very suitable for most occasions. |
| 6. The chamber with advanced control logic and PID adjustment technology so that it can maintain long-term stable operation. |
| 7. The chamber has multiple protection functions,which ensure the safety and reliability of product testing. |
| 8. The main components of the chamber are from international premium brands,so the whole machine has high reliability. |
Pictures:
